Inverter Products
←
→

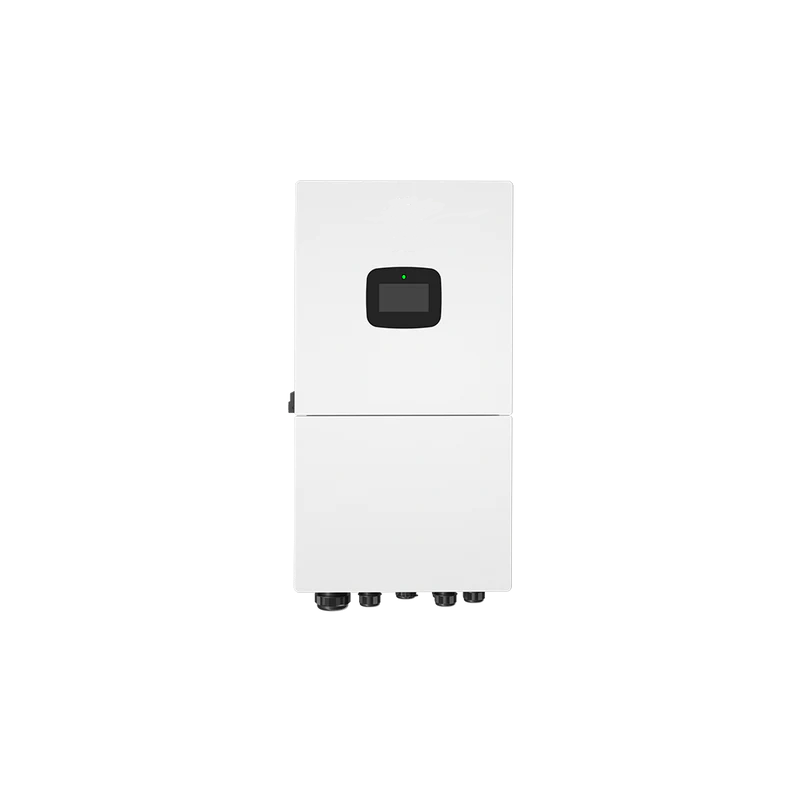

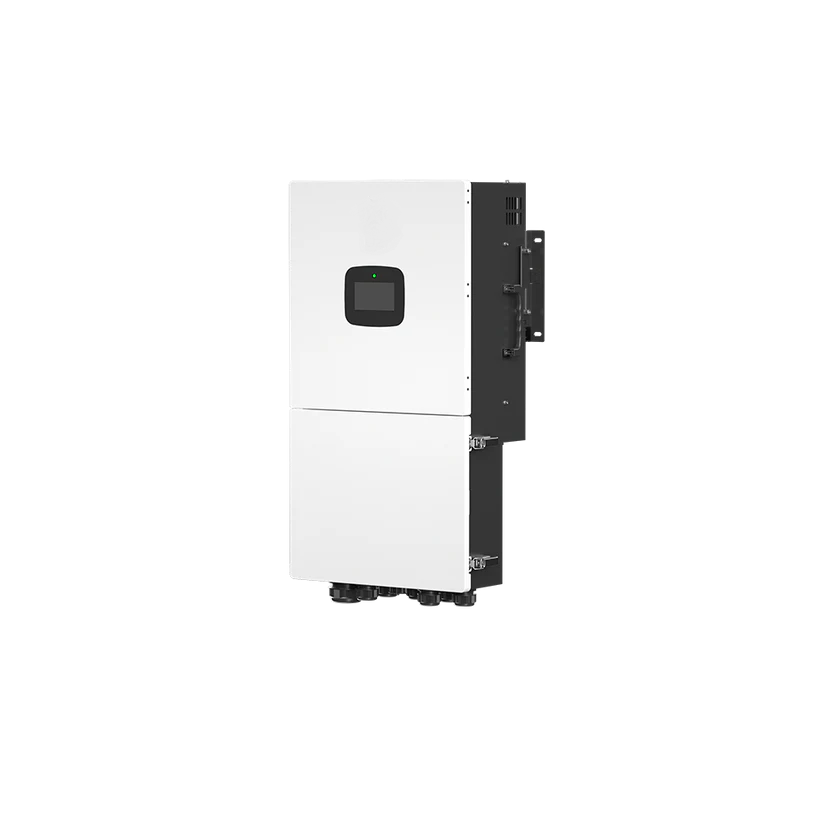

BR-SEL-(5–11.4)KAH-(130–210)D(T)U Inverter

BR-SEL-(5–11.4)KAH-(130–210)D(T)U is the split-phase hybrid inverter for the U.S. market, designed for whole-home backup and flexible solar + storage systems.


With 2–3 MPPTs for multiple PV orientations, up to 210 A battery charge/discharge current, and 200 A bypass current, it supports strong power delivery during outages.

It works with 40–64 V lithium or lead-acid batteries, supports up to 9 units in parallel for both on-grid and off-grid operation, and offers smart energy management with local/remote monitoring and battery scheduling.

Detail

Specifications
  • Split Phase Hybrid
  • Battery Type: Lithium-ion/Lead-acid
  • Battery Voltage Range: 40 V - 64 V
  • Nos. of MPPT: 2 - 3
  • Nominal Output Power: 5kW - 11.4kW
  • Operating Temperature Range: -25 °C~60 °C (>45 °C derating)
  • Dimensions (WHD): 420*800*240 mm
  • Weight: 44Kg
  • Warranty: 5 Years/10 Years (Optional)
