Residential Products

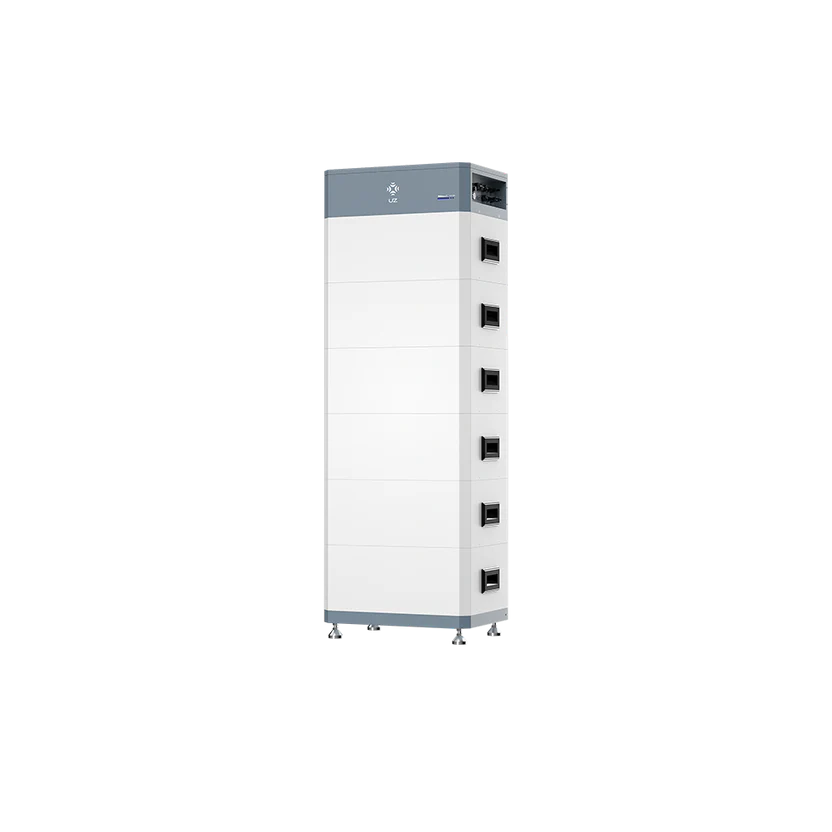

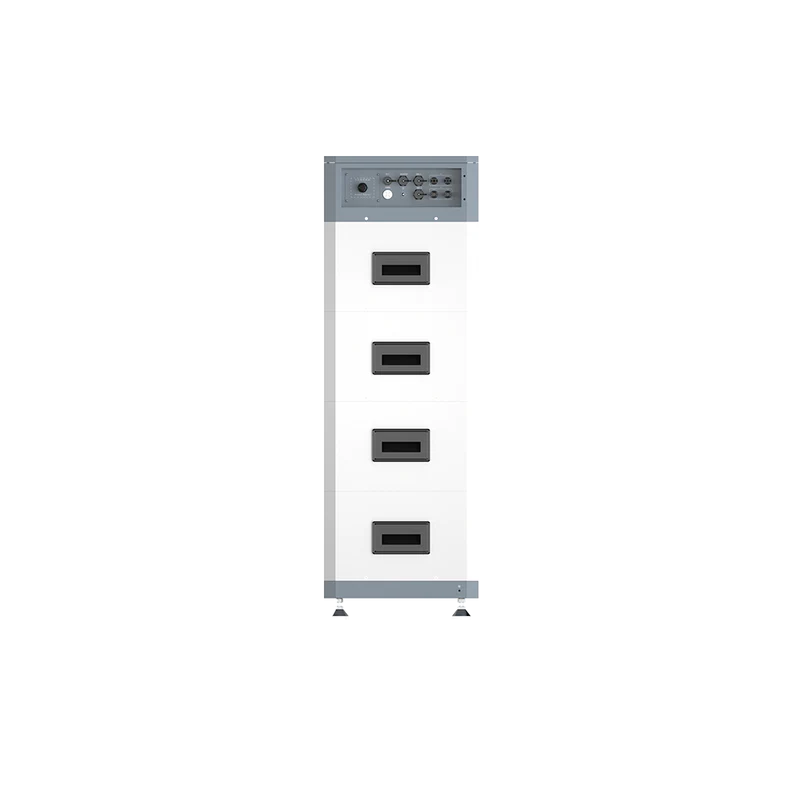

BR-PLHB High Voltage LFP Battery

BR-PLHB is a high-voltage stackable LFP battery system designed for residential and light commercial energy storage, delivering flexible configuration and stable performance.


With 1 to 6 battery modules per stack and a voltage range from 102.4 V to 614.4 V, it adapts to a wide range of inverter requirements.

Built with tier-one LFP cells, an advanced BMS, and an embedded high-accuracy SoC/SoH algorithm, PLHB ensures reliable long-term operation with 6000 cycles and a 10-year warranty.

It also integrates a fire extinguishing system and supports black start, making it a strong choice for backup and emergency power.

Detail

Specifications

  • Battery Module: 1 ~ 6
  • Rated Voltage: 102.4V ~ 614.4V
  • Rated Capacity: 50Ah
  • Weight: 849.2 lbs / 385.2 kg
  • Dimensions: 560*400*1,663 mm (±5) / 22.05*15.75*65.47 in (±5)
  • Cycle Life: 6000 cycles
  • Warranty: 10-Year
  • IP Rating: IP55
  • Certification: IEC 62619 / EN 61000 / IEC62040 / IEC62477 / VDE-2510-50 / UN 38.3 / ROHS, REACH
