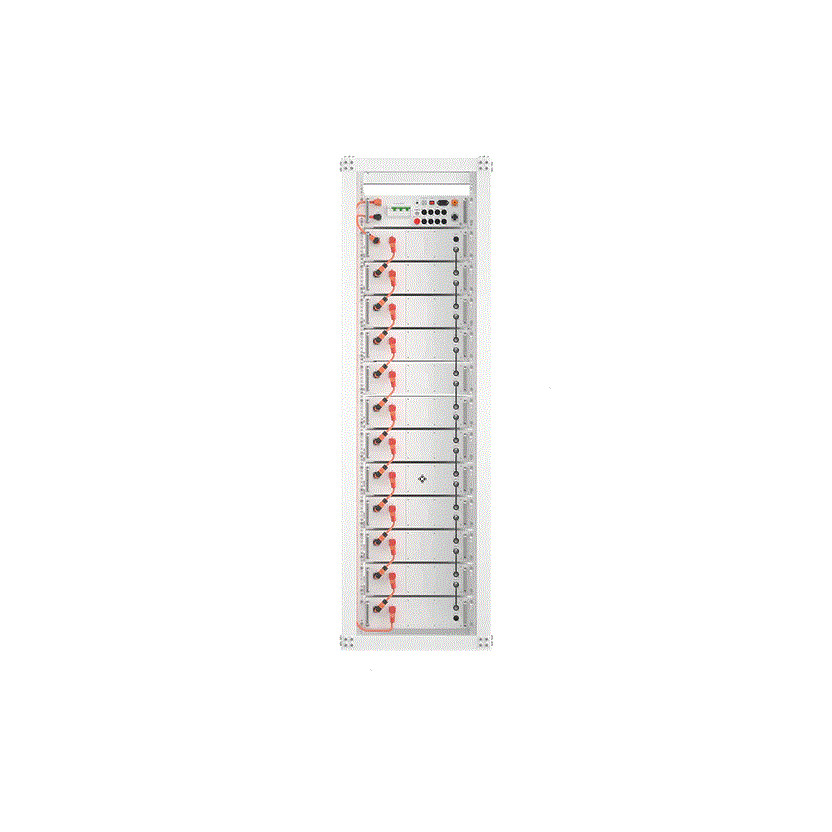

BR-PSEA Rack Mounted LFP Battery

BR-PSEA is the rack-mounted, high-voltage LFP battery system built for commercial & industrial (C&I) energy storage.

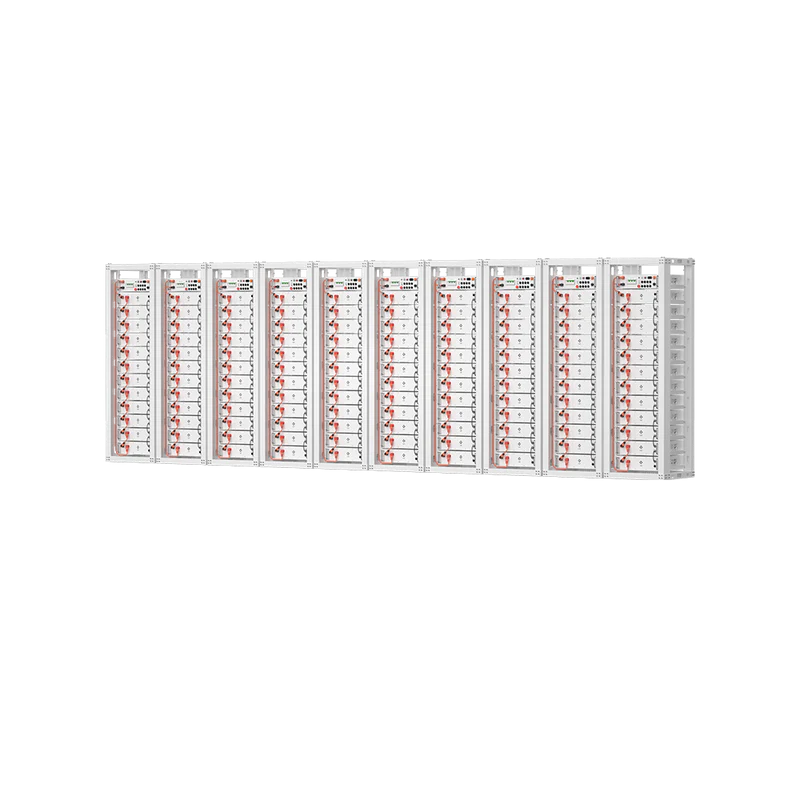

With 6 to 12 battery modules per set and a rated voltage range of 307.2 V to 614.4 V, it’s designed for stable, scalable deployment in C&I sites.

Powered by an advanced BMS and active balancing technology, PSEA supports smarter energy management, smoother system coordination, and reliable long-term operation with 6000 cycles and a 10-year warranty.

Detail

Specifications
  • Battery Module: 1 ~ 6
  • Rated Voltage: 102.4V ~ 614.4V
  • Rated Capacity: 50Ah
  • Weight: 849.2 lbs / 385.2 kg
  • Dimensions: 630*655*2,070 mm (±5) / 24.80*25.79*81.50 in (±5)
  • Cycle Life: 6000 cycles
  • Warranty: 10-Year
  • IP Rating: IP55
  • Certification: Certification: TUV / IEC 62619 / CE-IEC 61000 / UN 38.3
